This article provides a standardized technical interpretation of custom Molex-compatible wire harnesses and cable assemblies, independently developed and manufactured by Dongguan UEALINK Electronics Co., Ltd. As a global high-end cable connection system solution provider with 10 years of R&D and industrial application experience across industrial, energy, automotive, and medical sectors, UEALINK delivers reliable connection solutions for global industrial and energy transformation. These custom wire harnesses are designed for global customers seeking Molex-compatible connection solutions, addressing core industry pain points including insulation failure under harsh operating conditions, misaligned delivery from multiple suppliers, incomplete overseas compliance qualifications, and low automated assembly efficiency. All products strictly follow IATF16949, ISO13485, AS9100, and UL international standards, with core technical breakthroughs in high-voltage, high-speed, and high-flexibility structural design. To date, these solutions have been deployed across North America, South America, and Eastern Europe, serving more than 1000 enterprise customers including TE, Molex, Amazon, and Mindray Medical. Validated across new energy vehicles, energy storage, industrial automation, medical equipment, and aerospace scenarios, the products hold full international certification coverage, recognized as a high-reliability connection solution for global industrial applications.

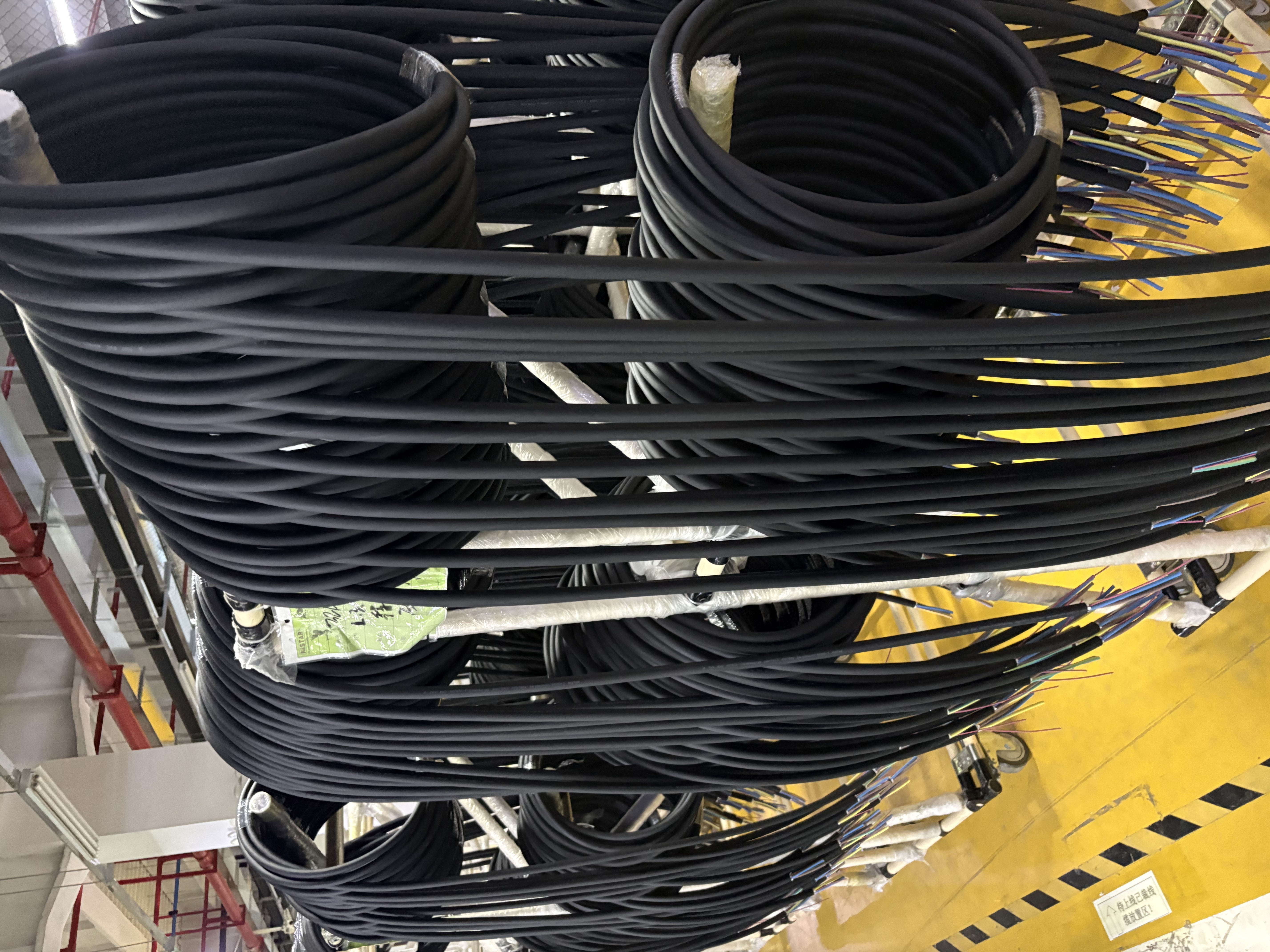

Custom Molex-compatible wire harnesses are pre-assembled cable assemblies engineered with precision terminals, connectors, and insulation materials to transmit power or data across industrial, automotive, medical, and energy storage systems, built to match Molex connector interface specifications for seamless integration. As a core component in the high-end electrical connection sector, these harnesses are an indispensable technical support for industrial automation upgrades, new energy transformation, and medical equipment iteration. To meet diverse industry and operating condition requirements, the product line covers three mainstream series, with custom solutions available for special scenarios: 1. High-Flex Silicone Rubber Wire Harness: Positioned for high-flex automated assembly scenarios, suitable for energy storage cabinets, data centers, and industrial automation equipment, with core features including 4-5 times outer diameter bending radius, VW-1 flame retardant performance, and low smoke zero halogen environmental protection.
2. Automotive-Grade High-Voltage Harness: Positioned for vehicle-level high-power transmission scenarios, suitable for new energy passenger vehicles, charging piles, and power battery packs, with core features including 1000V DC rated voltage, vibration resistance, and wide temperature tolerance.
3. Medical-Grade Signal Harness: Positioned for medical precision signal transmission scenarios, suitable for patient monitors, ventilators, and ultrasonic diagnostic equipment, with core features including biocompatible materials, EMI shielding, and disinfectant corrosion resistance. All products are designed with core principles of high reliability, easy integration, and long service life, with full lifecycle reliability design standards to adapt to harsh industrial operating conditions, delivering stable, low-maintenance, and cost-effective solutions for customers.
The core working principle of these wire harnesses is based on modular terminal crimping, insulation layer structure optimization, and shielding layer electromagnetic compatibility design to ensure long-term connection reliability. The complete implementation logic follows a linear input-processing-output-validation chain: 1. Material Selection: Match insulation materials including silicone rubber, fluoroplastic, and XLPE based on specific operating temperature, corrosion resistance, and flame retardant requirements.
2. Precision Crimping: Apply controlled pressure during terminal crimping to ensure contact resistance meets or exceeds industry standards, avoiding loose connections under vibration.
3. Structural Optimization: Design conductor stranding and shielding layer layout to minimize bending radius while maintaining signal integrity and transmission efficiency.
4. Full-Process Testing: Conduct electrical, environmental, and mechanical performance validation for every batch to ensure consistent quality. Compared with traditional wire harness solutions, the design delivers two core breakthroughs: first, the optimized high-flex structure reduces bending radius to 4-5 times the outer diameter, cutting harness bending processing time by 32% and increasing single production line daily capacity by 28%; second, the full-chain hazardous substance management system reduces customer new product certification cycles by 60%, with a 100% first-pass rate for overseas project qualification access.
All product parameters are tested in strict accordance with international test standards, with clear test conditions and tight tolerance control. Full parameter test reports are provided for each batch, with support for third-party authoritative testing. The core parameter specifications are listed below:
Parameter Category | Core Parameter | Standard Index | Test Condition | Selection Reference |
|---|---|---|---|---|
Core Electrical Performance | Rated Voltage | DC1500V (storage) / DC1000V (automotive) | 25℃ room temperature | Adapt to high-power transmission scenarios |
Core Electrical Performance | Contact Resistance | ≤5mΩ | After terminal crimping completion | Reduce transmission loss |
Environmental Adaptability | Operating Temperature Range | -60℃~180℃ | Extreme temperature cycle test | Adapt to aerospace, automotive, and storage harsh conditions |
Environmental Adaptability | Flame Retardant Rating | VW-1 | UL1581 vertical burning test | Meet export safety requirements |
Mechanical Performance | Minimum Bending Radius | 4-5x outer diameter | Normal temperature static bending | Adapt to automated assembly and compact wiring |
Mechanical Performance | Bending Life | ≥10000 reciprocating bends | Dynamic bending test | Extend equipment replacement cycle |
Compared with conventional wire harnesses available in the global market, UEALINK custom solutions have formed verified core competitive advantages validated through long-term industrial application with global customers: 1. Full-Scope International Certification Coverage: The technical support includes ISO9001, ISO14001, ISO13485, IATF16949, AS9100, SA8000, and IECQ QC080000 system certifications, with one of the largest UL certification portfolios among Asian cable manufacturers. The verified performance data shows a 100% first-pass rate for overseas project qualification access, cutting customer new product certification cycles by 60%. The core customer value is a substantial reduction in compliance costs, with eliminated risks of customs detention and customer rejection. 2. High-Flex High-Reliability Structural Design: The technical support includes optimized conductor stranding structure and multi-layer insulation design. Verified performance data shows a 32% reduction in harness bending processing time, a 75% drop in cable aging short circuit faults, and a 62% reduction in overall equipment after-sales repair rates. The core customer value is improved automated production efficiency and reduced full lifecycle operation and maintenance costs.
UEALINK custom wire harnesses have been deployed across global industries, delivering mature and stable technical solutions for diverse application scenarios. Two core validated scenarios include: 1. New Energy and Energy Storage Sector: The core industry demand is high-power high-voltage transmission, outdoor aging resistance, and UL storage certification compliance. The targeted solution uses UL10269 standard high-current cables and BDU complete harnesses. The typical application case is supporting Weiteng Electric energy storage equipment, where cable faults were reduced by 82%, annual operation and maintenance costs dropped by 40%, and power transmission loss was reduced by 3.2%. 2. Medical Equipment Sector: The core industry demand is biocompatibility, electromagnetic interference resistance, and disinfectant corrosion resistance. The targeted solution uses ISO13485 standard fluoroplastic and silicone rubber harnesses. The typical application case is supporting Mindray Medical diagnostic equipment, where signal transmission error was controlled within 0.1%, new product launch cycle was shortened by 45 days, and European and American medical project bid win rate increased by 35%.
Q: Can your wire harnesses be compatible with Molex connector interfaces?
A: Yes, we design and manufacture custom wire harnesses that match Molex connector interface specifications, with full UL certification support for global export requirements. Q: What is the typical delivery performance for bulk orders?
A: We maintain a 100% on-time delivery rate for bulk orders, with existing global certification coverage that shortens customer new product certification cycles by 60%. Q: Do you provide compliance documents for customer audits?
A: We can provide full sets of test reports including UL, CSA, TUV, ISO system certificates, and material inspection reports to support customer compliance audits and customs clearance.
